1.117 – BB Standard Corner Block with Reinforcements (DWG)

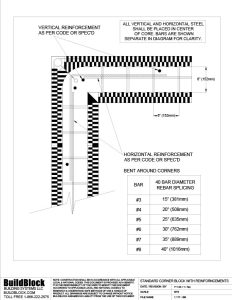

The following details consists of the standard corner block with its dimensions, sizes, specidfications and the suggested steel reinforcement

Download
File Type: dwg
Categories: 1.1 Corner Forms
Tags: 152mm, 6", 6in, 90 degree, bb-690, Corner, dwg, ICF, insulating concrete form, lap splice, rebar, Reinforcement, six, splice, standard, top
