4.044 – BBDT600 6 inch Sill Plate, Wood I Joist Perp to Wall (DWG)

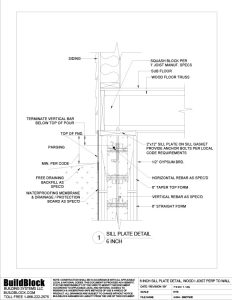

The following detail contains our 6 inch taper top block on a sill plate wood I joist perpendicular to wall

Download
File Type: dwg
Categories: 04. Floor Connections & Transitions
Tags: 152mm, 6?, 6in, backfill, bb-6dt, dwg, flashing, ICF, insulating concrete form, Joist, parging, perp, Siding, Sill Plate, six, standard, Straight, subfloor, taper top, Waterproofing, weep holes, wood joists
