“BuildBlock Insulating Concrete Forms (ICFs) are the strongest and most energy-efficient building material available today. ICFs are used to build homes, schools, churches, and other commercial buildings. Choosing ICFs for your next construction project means saving money every month and feeling secure in your home. “

The BuildRadius Wall & Pool ICF Radius Blocks Family



(Available Now! Ships from Missouri)

BuildRadius 4-Foot Radius Block

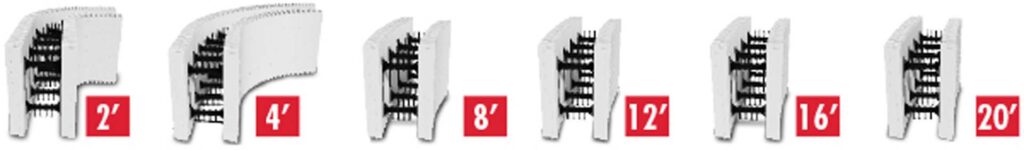

buildradius-family-all-sizes

BuildRadius 2-foot Radius Block

BuildRadius 2-foot Radius Block

BuildRadius is a family of radius forms for use in ICF walls and pool construction. The BuildRadius forms create 2’, 4’, 8’, 12’, 16’, and 20’ arcs. Each of these blocks interlocks into any BuildBlock 6” product line and uses the standard BuildBlock webs. Available in 6” widths initially, these forms are designed to ease construction of energy-efficient ICF pools, southwest style homes, bay windows, circular staircases, and provide options when designing unique areas in ICF homes.

“We have been evaluating the needs of our distributors and direct customers who are requesting new and innovative designs in their projects and simple ways to build pools and other structures.” says Mike Garrett, BuildBlock CEO. “We developed BuildRaidus using standard arcs to ensure the forms interlocked correctly using the same strong BuildBlock connections and webs as our other forms. This should deliver exceptional performance, simplified bracing and superb results. This is the fifth new product we have introduced this year with more to come this summer.”

ICF pools are growing in popularity because of increased energy efficiency which decreases costs for heating pools and extends the pool season. The benefits apply to both residential and commercial pools. Substantial heat is lost through the sides and floor of pools and ICFs deliver insulation performance. Additionally ICF pools can be built very quickly and efficiently reducing the number of materials, skilled labor and finishing products required.

Download

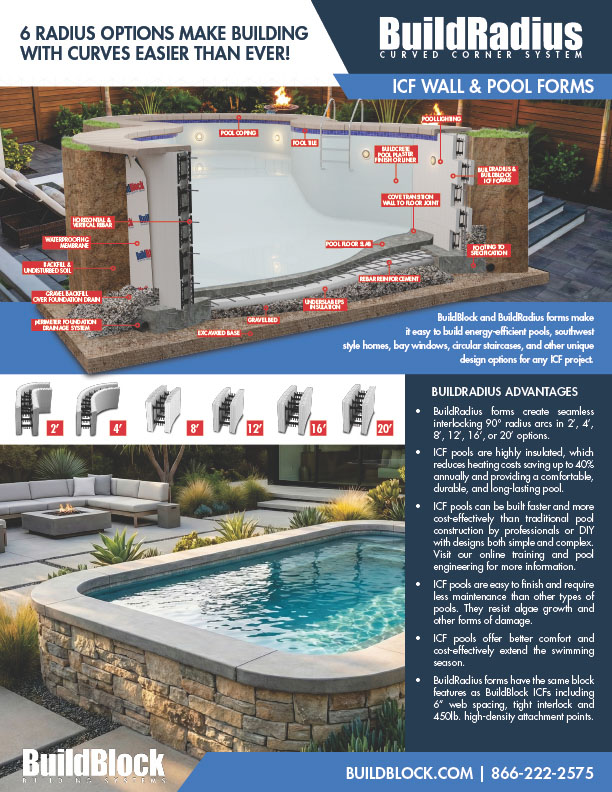

“BuildRadius ICF Wall & Pool Form Product Brochure”2018-BuildRadius-Brochure-1.pdf – 5 MB

BuildRadius Introduction Video

How to Design with Curved ICF Walls

BuildRadius Product & Installation Manual

Download
“BuildRadius Product & Installation Manual”BuildRadius-Product-and-Installation-Manual-20160815.pdf – 6 MB

Product Specifications

ProductID

BBR-602

BBR-604

BBR-608

BBR-612

BBR-616

BBR-620

90°Arc Length2ft/ 60.96 cm4ft/ 121.92 cm8ft/ 243.84 cm12ft/ 365.76 cm16ft/ 487.68 cm20ft/ 609.6 cm
BlockAngle90°90°22.5°15°11.25°
OuterArc Length24in / 60.96 cm48in / 121.92 cm24in / 60.96 cm24in / 60.96 cm24in / 60.96 cm24in / 60.96 cm
InnerArc Length20.1875in / 51.27 cm30.68in  /77.94 cm19.75in / 50.16 cm21.125in / 53.65 cm21.8125in / 55.40 cm22.25in / 56.51 cm
StraightLeg18in / 6 in
45.72cm / 15.24 cm
12in / 0
30.48 cm / 0
0000
PanelHeight16in / 40.64 cm16in / 40.64 cm16in / 40.64 cm16in / 40.64 cm16in / 40.64 cm16in / 40.64 cm
OuterPanel Surface Area5.333ft2
0.4951 m2
6.667ft2
0.6193 m2
2.667ft2
0.2477 m2
2.667ft2
0.2477 m2
2.667ft2
0.2477 m2
2.667ft2
0.2477 m2
InnerPanel Surface Area4.91ft2
0.4561 m2
4.743ft2
0.4406 m2
2.194ft2
0.2038 m2
2.347ft2
0.2180 m2
2.424ft2
0.2251 m2
2.472ft2
0.229 m2
ConcreteVolume0.056296yd³
0.043041 m3
0.105645yd³
0.080771 m3
0.045099yd³
0.03448 m3
0.04642yd³
0.035490 m3
0.04715yd³
0.036048 m3
0.047606yd³
0.036397 m3
OuterDiameter    2.55ft. / 30.56 in
77.72 cm
5.09ft. / 61.12 in
155.14 cm
10.19ft. / 122.23 in
310.59 cm
15.28ft. / 183.35 in
465.73 cm
20.37ft. / 244.46 in
620.88 cm
25.46ft. / 305.58 in
776.02 cm
OuterRadius1.27ft / 15.28 in
38.81 cm
2.55ft / 30.56 in 77.724 cm5.09ft / 61.12 in
155.14 cm
7.64ft / 91.67 in
232.87cm
10.19ft / 122.23 in
310.59 cm
12.73ft / 152.79 in
388.01 cm
InnerDiameter0.71ft / 8.5 in
21.64cm
3.26ft / 39.125 in
99.36cm
8.35ft / 100.25 in
254.51cm
13.45ft / 161.375 in
409.96cm
18.54ft / 222.5 in
565.1cm
23.63ft / 283.625 in
720.24cm
InnerRadius0.36ft / 10.97 cm1.63ft / 49.68 cm4.18ft / 127.41 cm6.72ft / 204.82 cm9.27ft / 282.54 cm11.82ft / 360.27 cm
Circumference8ft / 2.4384 m16ft / 4.8768 m32ft / 9.7536 m48ft / 14.6304 m64ft / 19.5072 m80ft / 24.384 m
EPSFoam Depth2.5″/5″ Total
6.35 cm/12.7 cm Total
2.5″/5″ Total
6.35 cm/12.7 cm Total
2.5″/5″ Total
6.35 cm/12.7 cm Total
2.5″/5″ Total
6.35 cm/12.7 cm Total
2.5″/5″ Total
6.35 cm/12.7 cm Total
2.5″/5″ Total
6.35 cm/12.7 cm Total

Image Gallery



BuildRadius Wall & Pool ICF Radius Forms January 29, 2016
