6.016 – BB800 8 inch Steel Joist Roof, Side Wall with no Parapet (DWG)

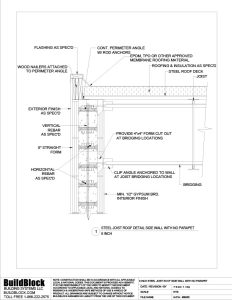

The following detail contains our 8 inch straight block placed in steel joist roof side wall with no parapet

File Type: dwg
Categories: 06. Roof Connections
Tags: 203mm, 8?, 8in, bb-800, dwg, eight, flashing, gypsum, ICF, insulating concrete form, Insulation, Roofing, side wall, standard, steel joist, steel roof, Straight, wood plate
