This product has been discontinued to the best of our knowledge. It was a tremendous product with many benefits for the ICF industry before the development of ICF Foam Bucks such as BuildBuck. We are leaving this page up for historical information.

The VBUCK vinyl block-out system is easy to assemble, installs quickly, helps job sites look cleaner, and is available at an installed price equal to wood. Complete your energy efficient package for builders and buyers of ICF structures with VBUCK vinyl block-outs.

VBuck Material

VBuck Material

Why violate your ICF installation with wood that may be laced with hazardous chemicals? Price, size, ability to perform, the VBUCK Brand block-out and bracing system consistently meets customer needs when custom work is required.

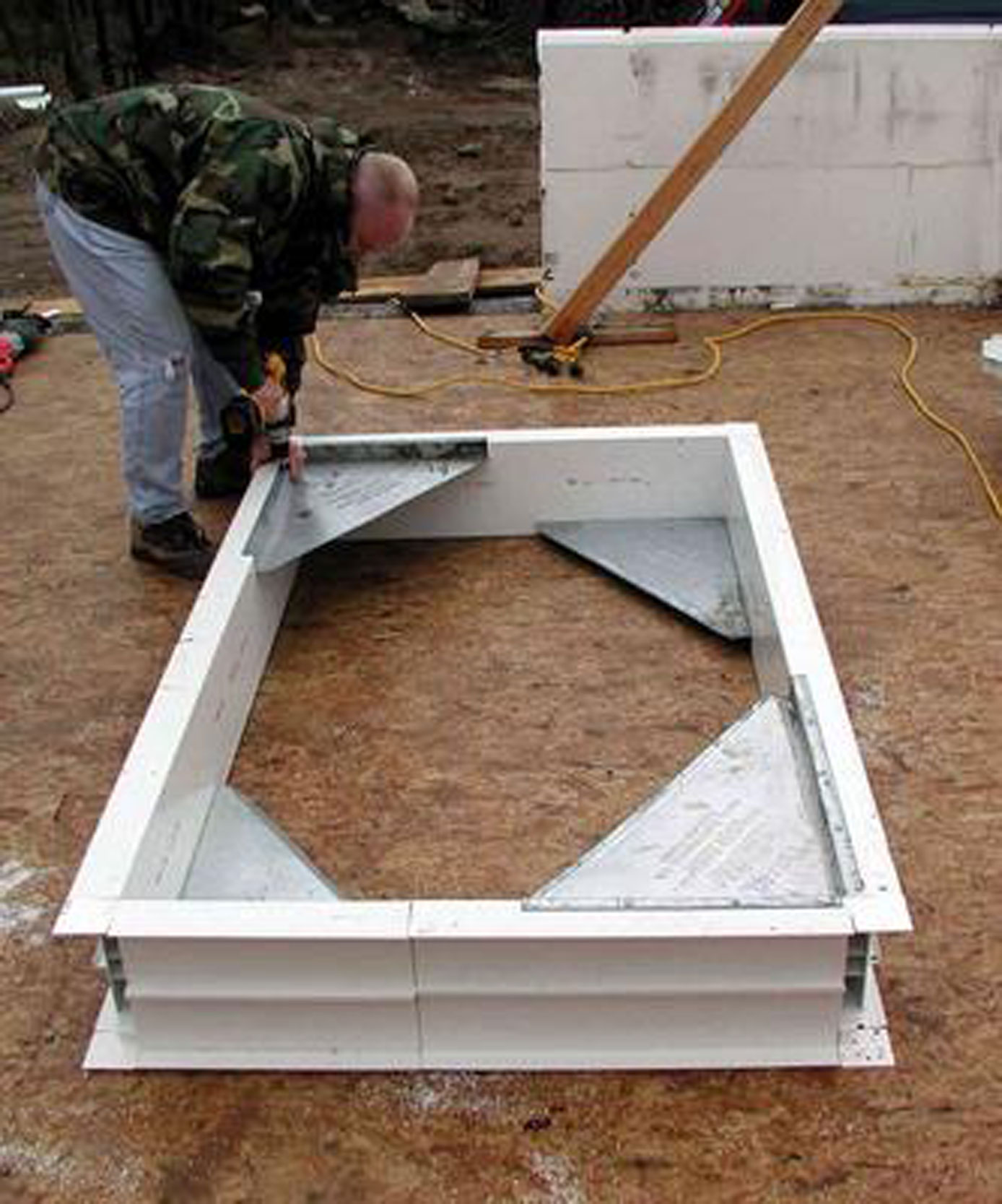

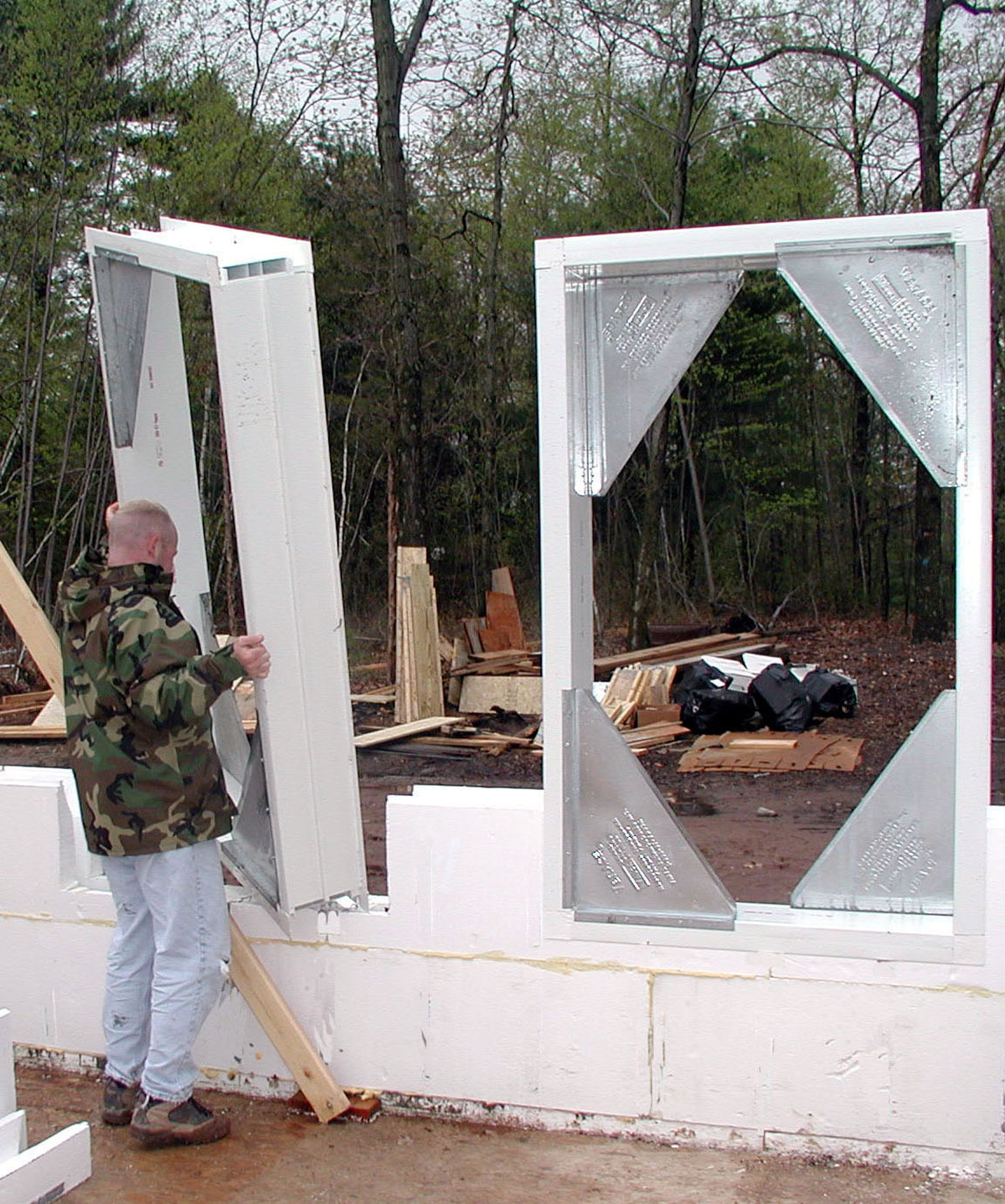

Compared with wood, vinyl window block-outs effect energy savings. There are no suprises with this product. Simply snap VBUCK together, attach bracing, and install in any ICF block. Virtually anyone can assemble and install the VBUCK block-out system.

All the window shapes and styles you might envision can be pre-manufactured for your next project. The VBUCK brand vinyl block-out system increases the versatility of your ICF buildings. VBUCK is extruded in 14 widths and manufactured in a variety of custom shapes and sizes.

VBUCK:

  • 16 foot lengths (for larger openings)
  • Corner and center connectors
  • Variable corner connectors (trapezoids, Hexagons)
  • Splice/Spline/CPVC (less waste and adds  strength for doors)
  • 100% post industrial waste PVC
  • Fewer call backs (no warping or shrinking)
  • Light weight



VBuck Downloads

VBuck-cad-details.pdf

vbuck-technical-drawings.zip

vbuck-assembly.pdf

vbuck-assembly-shapes.pdf

vbuck-instructions-english-spanish.pdf

vbuck-instruction-manual.pdf

vbuck-instruction-manual-spanish.pdf

vbuck-specs.pdf



Part NamePart NumberDescription
11″ VBuck 1404 Packaged in bundles of 480 feet, 8 & 16-foot pieces, 30 each.
13″ VBuck 1456 Packaged in bundles of 480 feet, 8 & 16-foot pieces, 30 each.
Custom Shapes 1491

1492

1493

1494

Half Rounds, Eyebrows, Arches, Ellipses, Full Round, Oval, Palladian, Gothic. Sold in diametric inch for each bend (full round requires two bends). Templates required on ellipses, ovals and gothic. Allow 3 weeks for fabricating.
Chamfered VBUCK 1417 Chamfered window. Fabrication at Vinyl Technologies’ plant is recommended (wood insert and window not included).
Outside Corner Connector 8001 Sold in boxes, 200/box.
Inside Corner Connector 8002 Sold in boxes, 100/box.
Variable Corner Connector 8003 Variable corner connector, sold by each.
Splice 1416-1 Sold per box, 40/box. Each piece, approximately 11.5″ long.
Spline 1416 Sold per box, 48 feet/box. 12 pieces “I” beam shape, 4′ each piece.
VBUCK Reinforcement — CPVC 2536 1 1/4′ x 1 1/4′ cellular PVC. Packaged in boxes of 36 feet (9 pieces, 4 feet long). Sold by the foot.
VBRACE – ABS 6001 VBRACE – 18″ x 18″ ABS plastic.
SIngle Yoke & Tie 7501 For lateral bracing of VBUCK for ICFs 10″ wide or less.
Double Yoke & Tie 7502 For lateral bracing of VBUCK for ICFs wider than 10″.
34″/53″ Extension Power Brace 7107 Horizontal and Vertical Bracing. Used when opening size exceeds VBrace maximum coverage.
53″/82″ Extension Power Brace 7106 Horizontal and Vertical Bracing. Used when opening size exceeds VBrace maximum coverage.
86″/104″ Extension Power Brace 7100 Horizontal and Vertical Bracing. Used when opening size exceeds VBrace maximum coverage.
Vent Assembly – Temp. Controlled 5002 Pre-assembled VBUCK vent. Specify block width when ordering.
Vent Assembly – Manual 5004 Pre-assembled VBUCK Vent. Vent made of PVC with fiberglass screen. Specify block width when ordering.
Smart Vent — Dual Function/Flood Vent SV0816

SVD0816

Pre-assembled VBUCK with Smart Vent dual function/flood vent installed (8″ x 16″). Specify width when ordering.
Smart Vent — Dual Function/ Flood Vent SV1616

SVD1616

Pre-assembled VBUCK with Smart Vent dual function/flood vent installed (16″ x 16″). Specify width when ordering.
